Gamma4

Select a point of interest to discover more about Gamma4 products.

Trochanteric Nail
Intermediate Nail
Long Nail
G4-IN-40
Smaller proximal size
x
Smaller proximal size
•
Proximal diameter of Ø15.5mm
•
Proximal body is 5mm shorter and beveled for less trochanteric protrusion
•
Optional end caps available
Lag Screw
x
Lag Screw
•
Diameter: ∅10.5mm
•
Length Options: 70 - 130mm (5mm increments)
•
Thread Length: 30mm
•
Lag Screw advances 0.8mm per ¼ turn.
•
Cannulated for ∅3.9mm Precision Pin™
•
Set screws designed for controlled subsidence
Pre-inserted and
cannulated set screw
x
Pre-inserted and cannulated set screw
•

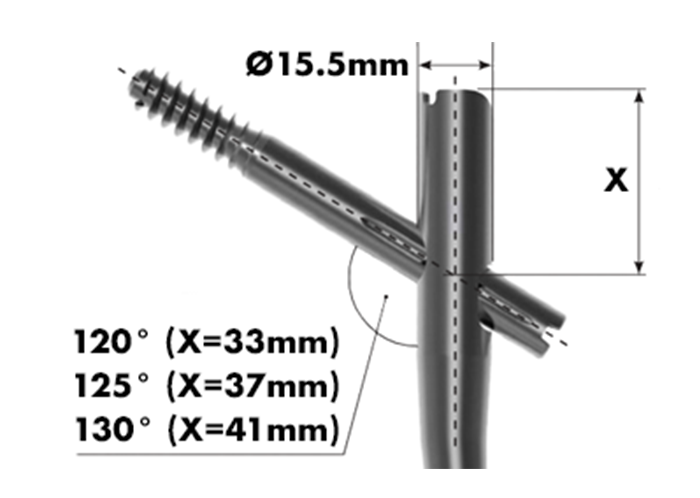

ML Bend: 4°
•
CCD's:120°, 125°, 130°
•
Pre-inserted and cannulated set screw
Straight shaft for
universal application
x
Straight shaft for universal application
•
Distal Diameters: ∅ 9, 10, 11, 12, 13mm
•
ML Bend: 4°
•
Material: Titanium (Ti6Al4V)
•
Ti Anodization: Type II
•
Total Nail Length: 170mm
•
Working length equivalent to Gamma3® 180mm
•
Due to the straight shaft, the Gamma4 trochanteric nail can be universally applied (left/right sides).
Medial bevel for
nail insertion
x
Medial bevel for nail insertion
•
Medial bevel for nail insertion
•

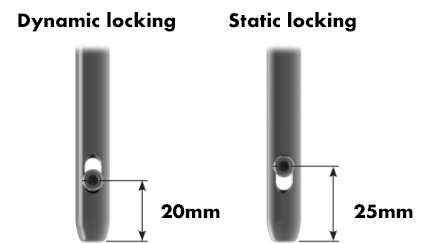

Ø5.0mm locking screws
Smaller proximal size
x
Smaller proximal size
•
Proximal diameter of Ø15.5mm
•
Proximal body is 5mm shorter and beveled for less trochanteric protrusion
•
Optional end caps available
Lag Screw
x
Lag Screw
•
Diameter: ∅10.5mm
•
Length Options: 70 - 130mm (5mm increments)
•
Thread Length: 30mm
•
Lag Screw advances 0.8mm per ¼ turn.
•
Cannulated for ∅3.9mm Precision Pin™
•
Set screws designed for controlled subsidence
Pre-inserted and
cannulated set screw
x
Pre-inserted and cannulated set screw
•

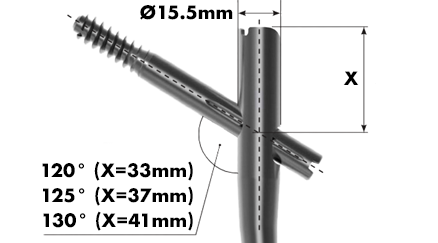

Lag Screw Opening: 10° anteversion
•
ML Bend: 4°
•
AP Bend: 3°
•
CCD's:120°, 125°, 130°
•
Pre-inserted and cannulated set screw
240mm length
x
Total nail length: 240mm
•
Distal Diameters: ∅ 9, 10, 11, 12, 13mm
•
ML Bend: 4°
•
AP Bend: 3°
•

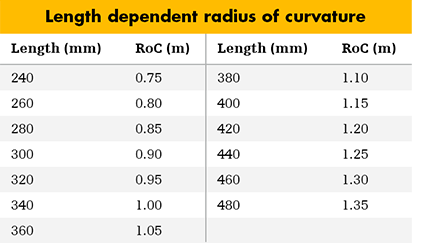

Radius of curvature: 0.75m
•
Material: Titanium (Ti6Al4V)
•
Ti Anodization: Type II
•
Total Nail Length: 240mm
A-P bevel for
nail insertion
x
Medial bevel for nail insertion
•

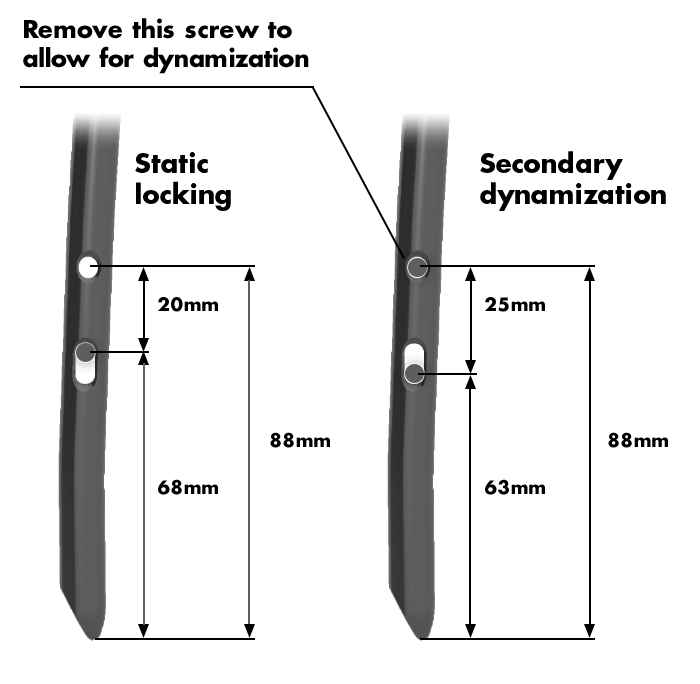

Ø5.0mm Locking or Advanced Locking screws
•
The oblong hole only accepts Locking Screws
Smaller proximal size
x
Smaller proximal size
•
Proximal diameter of Ø15.5mm
•
Proximal body is 5mm shorter and beveled for less trochanteric protrusion
•

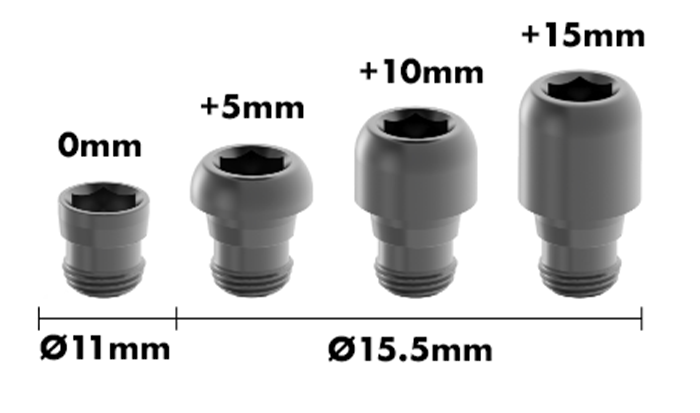

Optional End Caps:
Lag Screw
x
Lag Screw
•
Diameter: ∅10.5mm
•
Length Options: 70 - 130mm (5mm increments)
•
Thread Length: 30mm
•
Lag Screw advances 0.8mm per ¼ turn.
•
Cannulated for ∅3.9mm Precision Pin™
•
Set screws designed for controlled subsidence
Pre-inserted and
cannulated set screw
x
Pre-inserted and cannulated set screw
•
Lag Screw Opening: 10° anteversion
•
ML Bend: 4°
•
CCD's:120°, 125°, 130°
•
Pre-inserted and cannulated set screw
240 - 480mm
(20mm increments)
x
240 - 480mm (20mm increments)
•
Distal Diameters: ∅ 9, 10, 11, 12, 13, 15mm
•
Material: Titanium (Ti6Al4V)
•
Ti Anodization: Type II
•
ML Bend: 4°
•
AP Bend: 3°
•
Total Nail Lengths: 240 - 480mm (20mm increments)
A-P bevel for
nail insertion
x
A-P bevel for nail insertion
•
Ø5.0mm Locking or Advanced Locking screws
•
The oblong hole only accepts Locking Screws
